Certification : RoHS
Insulation Material : Environmentally Friendly Silicone
is_customized : Yes
Conductor Material : Tinned copper
Model Number : 30AWG-16awg
Conductor Type : Stranded
Application : Heating
Type : Insulated
We focus on the production of wires and cables and casting harnesses.
The company has established a complete quality assurance system and perfect management mechanism, and adheres to the highest philosophy of "quality first, customer satisfaction, continuous improvement, and sustainable development".
Warmly welcome new and old customers and foreign customers to patronize? We also welcome domestic and foreign customers to consult, and we are willing to cooperate with you for a better future.
All photos are taken by the real product. You can choose the color you need according to your needs, and we will send your package according to your needs.
There is a large inventory of all wire colors. Please rest assured to place an order. After receiving your order, we will pack your package as soon as possible and deliver it to the logistics company as soon as possible. The logistics company will deliver your package to you as soon as possible. Please be patient! ! ! Thank you very much for your understanding!
Please do not open disputes without asking for help! ! !
Model: Soft high temperature silicone wire
Rated voltage: 600V
Temperature range: -60°C~+200°C
Manufacturing Country/Region: China
Insulation: Flexible environmentally friendly silicone
Applications: RC, remote control, new energy batteries, various electronic connections, etc. (widely used)
Diameter of each copper wire: 0.08mm
Conductor material: tinned copper wire
Size range: 30AWG, 28AWG, 26AWG, 24AWG, 22AWG, 20AWG, 18AWG, 17AWG, 16AWG
Conductor type: stranded copper wire
Certification: UL, RoHS, VW-1, CSA FT1
The super soft silicone cable can be used almost unlimitedly!
Very suitable for various DIY electrical and hobby projects! The highly durable tinned copper wire has a durable environmentally friendly silicone sheath, high temperature resistance of 200°, and cold resistance of -60°.

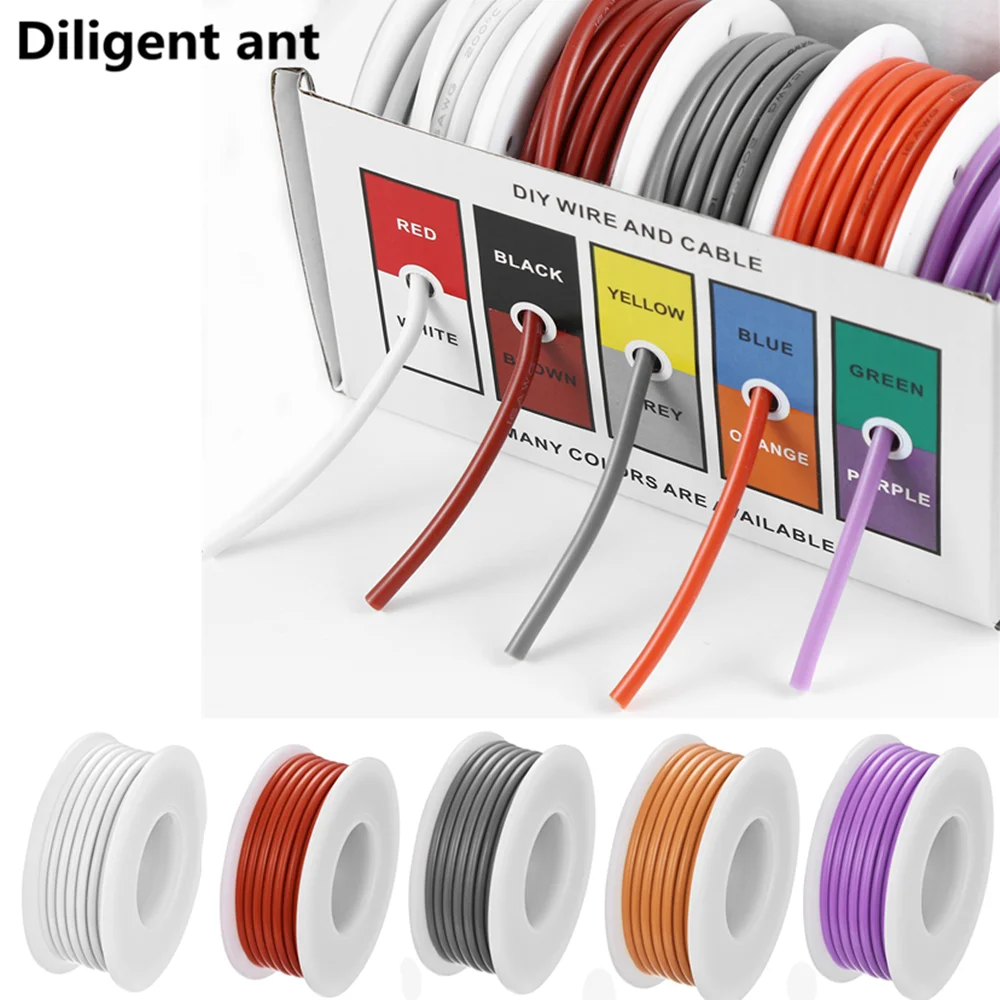

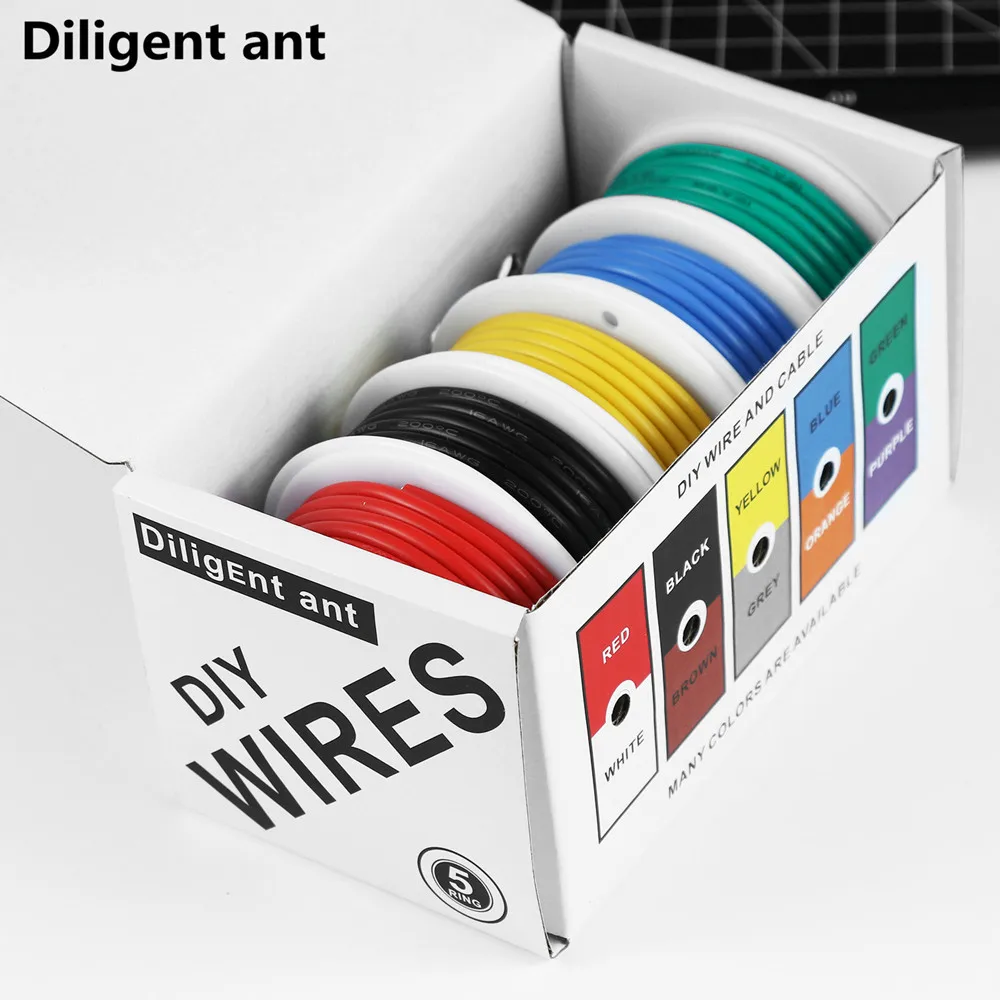

30AWG, 28AWG, 26AWG, 24AWG, 22AWG, 20AWG, 18AWG, 17AWG, 16AWG: All types of silicone wires, each box is composed of 5 colors of soft high temperature silicone wires. (Convenient for every customer to use and experience)
The total length of the wire: 250 meters (combination of 5 colors, 50 meters for each color)
The total length of the wire: 100 meters (combination of 5 colors, 20 meters for each color)
The total length of the wire: 50 meters (combination of 5 colors, 10 meters for each color)
The total length of the wire: 25 meters (combination of 5 colors, 5 meters for each color)
The total length of the wire: 20 meters (combination of 5 colors, 4 meters for each color)
Length of each axis:
Diligent Ant: Color No. 1 (red, black, yellow, blue, green)
Diligent Ant: Color No. 2 (white, brown, gray, orange, purple)
Length of each axis:
Length 250 meters: 30AWG 50 meters per axis
Length 100 meters: 30AWG, 28AWG, 20 meters per axis
Length 50 meters: 30AWG, 28AWG, 26AWG, 24AWG, 22AWG, 20AWG, each axis 10 meters
Length 25 meters: 24AWG, 22AWG, 20AWG, 18AWG, 5 meters per axis
Length 20 meters: 17AWG, 16AWG, 4 meters per axis
Flexible silicone wire 16 AWG
Temperature: -60 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Core: 252 strands (1.27 mm2)
Outer diameter: 3.0mm
Flexible silicone wire 17AWG
Temperature: -60 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Core: 210 strands (1.0 mm2)
Outer diameter: 2.9mm
Flexible silicone wire 18 AWG
Temperature: -60 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Core: 150 strands (0.75 square mm)
Outer diameter: 2.3mm
Flexible silicone wire 20 AWG
Temperature: -60 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Core: 100 strands (0.5 square mm)
Outer diameter: 1.80mm
Flexible silicone wire 22 AWG
Temperature: -60 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Grain: 60 strands (0.3 mm2)
Outer diameter: 1.70mm
Flexible silicone wire 24 AWG
Temperature: -60 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Core: 40 strands (0.2 mm2)
Outer diameter: 1.60mm
Flexible silicone wire 26 AWG
Temperature: -60 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Core: 30 strands (0.15 mm2)
Outer diameter: 1.5mm
Flexible silicone wire 28 AWG
Temperature: -60 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Core: 16 strands (0.08 square mm)
Outer diameter: 1.3mm
Soft silicone wire 30AWG
Temperature: -60 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Core: 11 strands (0.06 square mm)
Outer diameter: 0.8mm
